Cnc Servo Motors Kits of 2025
Best Choice1

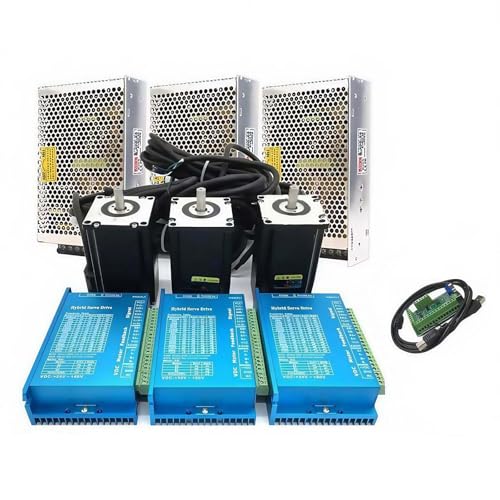

TOSEASTARSCNC Controller Kit 3 Axis with Closed Loop Stepper Motor Kit Nema 34 8.5Nm 1000 Line Encoder Steping Motors DSP Easy Servo with 18-110VDC Driver, 400W 60V Power Supply, Mach3 Control Card
Main highlights- [Premium Materials]: The Nema 34 stepper motor is meticulously crafted using high-quality materials, ensuring optimal performance and durability for any task. The high torque of the 86 stepper motor driver kit not only provides substantial force for managing large or heavy loads but also ensures precise positional control.
- [Parameters]: CLOSED LOOP STEPPER MOTOR: Phase: 2PH; Rated Current: 6A; Step angle: 1.8 degree; Phase Resistance: 0.45Ω; Phase Inductance: 4mH; Holding Togque: 8.5Nm (1203.7oz.in); Rated Speed: 1000RPM; Encoder: 1000line; Rotor Inertia: 2700g.cm². CLOSED LOOP STEPPER DRIVER: Output Peak Current: 0~8A; Input Voltage: +18~110VDC, 18~80VAC; Pulse Input Frequency: 0~200kHz; Micro-stepping driver: 200~51200ppr.
- [Dimensions]: NEMA 34 closed loop stepper motor: 86x86x118mm / 3.39x3.39x4.65inch, Shaft Diameter: Φ 14mm, Shaft Length: 25mm, 2 phase, 4 wires: closed loop step motor Driver: 150x97x52mm / 5.91x3.82x2.05inch. 400W 60V Power Supply: 215*115*50 mm / 8.46*4.52*1.97 inch.
- Parameters: Power Supply: Power:400W; Output Voltage(DC): 60VDC; Input Voltage (AC): 110V/220V(+-10%); Output Current: 6.6A; Safety Compliance:CCC/ FCC / CE. Mach3: Type: BL-UsbMach-100-V3.25; System: windows XP,WIN7,WIN8,WIN10: 64Bits; MCU: 32Bits STM; MCU Freg.: 1-100KHZ/axis; Voltage: DC 12V-24V; Input: 5 optocoupler isolation; Output: Two 24v; Two 5v; Handwheel Port: 15P; Axis: XY,Z,A,B,C(free 5axis).
- High Efficiency: Our nema 34 closed loop stepper motor can suitable for all kinds of small and medium-sized automationequipment and instruments, such as: engraving machines, cuttingmachines, laser machines, plotters, CNC machine tools, automaticassembly equipment, electronic processing equipment, textile andclothing equipment, etc.The application effect is better in the equipment with low noise.
9.8Exceptional
View offer on:
Show more
- Curious about how we select the top products for you? Explore How It Works
Value for Money2
TOSEASTARSCNC Controller Kit 5 Axis with Closed Loop Stepper Motor Kit Nema 23 DSP Easy Servo 2 Nm 1000 Line Encoder Step Motor 1000rpm, 24-80V DC Steping Driver 350W Power Supply, Mach3 Control Card
Main highlights- Stable output 24V DC power supply: Over-current, over-voltage and overload protection, power supply stable power supply, electrical energy conversion rate of up to 90%, higher efficiency. Shell hollow design, heat dissipation ability faster and stronger, more durable performance. AC input voltage range: 110V or 220V AC; selected by switch to choose input voltage.
- Specifications of Closed Loop Stepper Motor: Holding Torque: 2N.m; Current: 3A; Phase: 2; Motor Length: 57x57x80 mm / 2.24*2.24*3.15 inch; Step Angle: 1.8 degree; Motor Lead Wire: 4-wire; Encoder: 1000 lines; Inductance: 2 mH; Resistance: 0.7 (ohm).
- Parameter of Motor Driver: Type: DSP Closed loop stepper drive; Maximum peak current: 13A; Impulse response frequency: 200KHz; Input Voltage: 24-80VDC; Micro-stepping driver: 200~25600ppr; Compatible : 4.5~28V signal; Signal input: Support PUL/DIR and CW/CCW modes (difference). This motor driver kit fits all types of machine load conditions without adjusting the gain parameters.
- Items in Kit: 5 Pcs 2Nm Closed loop stepper motor with 1000line encoder. 5 Pc Nema 23 Closed loop stepper motor driver. 2 x 350W Power Supply and 1 x USB Mach3 Card. This is a professional 3d printer DIY kit made of high premium materials.
- Functions of the Mach3 Control Board: It supports 5-axis linkage control at most. Strong anti-interference and high reliability. Nema 23 closed loop stepper motor kit can be applied to all kinds small and medium-sized automation equipment and instrument,such as 3D printer, CNC machine, milling machine, carving machine, special industrial sewing machine, stripping machine, marking machine, graph plotter, cnc machine, automatic assembly equipment,automation application and so on.
9.7Exceptional
View offer on:
Show more
3

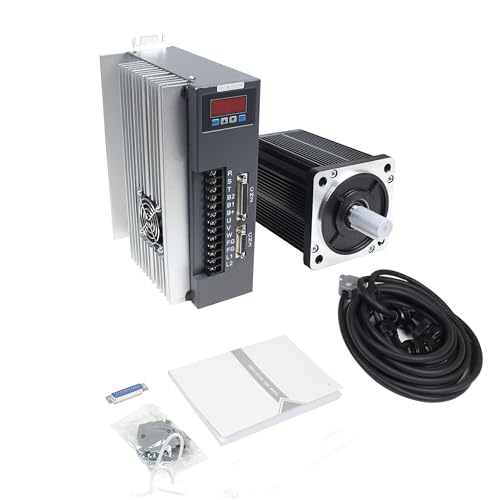

RATTMMOTORRATTMMOTOR 1000W 220V Servo Motor Kit, Servo Motor with Servo Motor Driver and Brake Encoder Cable, CNC Controller Kit for CNC Engraver Milling Machine/Robot (1000W Without Brake)
Main highlights- 【Triple Overload/Powerful Motor】The motors are made of high quality materials with 3 times overload capacity, built-in disturbance torque observer, extremely strong resistance to external disturbances and stable operation. The motor also has features such as: high torque, no lost step, low noise, fast response, small size, high controllability, and has been operated.
- 【Motor parameters】Model: A2M-80SV03230; With brake: No; Power: 1000W; Number of poles: 5 pairs; Rated power supply: 220V; Rated speed: 3000r/min; Peak speed: 6000r/min; Rated torque: 3.8 N.m; Max torque: 11.4 N.m; Rated current: 4.8A; Max current: 14.4A; Ender Resolution: 10000ppr; Protection structure: IP65; Impact strength: 98m/s²; Vibration resistance: 49m/s².
- 【Driver Parameters】Model: S2SVD20; Maximum current: 20A; Input voltage: AC220V (50/60Hz); Cooling method: Heat dissipation air cooling; Encoder type: 17 bit magnetic encoder.
- 【Driver Multiple Functions】The driver adopts advanced algorithm, low-speed operation is more stable, at the same time, the high-performance encoder ensures the accuracy of the motor; Reserved multiple IO function interface, arbitrary combination to meet the functional needs of different occasions; support RS-232, RS-485 interface, modbus communication protocol, can be connected to the PC, PLC and other host computer equipment.
- 【Application Areas】Suitable for a variety of automation equipment and instruments, such as screw machines, automatic equipment, medical equipment, semiconductor equipment, engraving equipment, measuring equipment, AGV carts, etc.
- 【AC Servo Features】Three types of command pulse input, i.e. command direction and pulse input, clockwise/counterclockwise pulse input, and quadrature pulse input with 90 degree phase difference. Position control, speed control, torque control, and extension control can be converted through Modbus communication to meet common applications. The display mode can be switched between three modes: monitor mode, auxiliary mode, and user parameter mode.
9.5Excellent
View offer on:
Show more
4
RATTMMOTORRATTMMOTOR Nema34 12N.m Closed Loop Hybrid Servo Motor Stepper Motor 12nm 1700oz-in 156mm 6A 2 Phase & HSS86 Servo Driver & 3m Wire CNC Controller Kit for CNC Router Engraving Milling Machine
Main highlights- Widely used: Closed loop stepper system can be applied to all kinds small automatic equipment and instrument;Such as engraving machine, special industrial sewing machine, stripping machine, marking machine, cutting machine, graph plotter, cnc machine, automatic assembly equipment and so on;This motor driver kit fits all types of machine load conditions including pulley and low stiffness pulley without adjusting the gain parameters
- Specifications of Motor: Model is 86HSE156; Holding Torque:12N.m 1700oz-in; Rated Current:6A; Peak Current:8A; Phase:2-Phase; Size:86x86x156mm; Step Angle:1.8 degree; Motor Lead Wire: 4-Wires; Encoder lines:1000; Shaft diameter: 14mm
- Specifications of Driver: Model is 2HSS86; Type:2-Phase Hybrid Stepper Servo Driver; Frequency:0-200KHz; Insulation resistance:>=500MΩ; Voltage: AC 24-70V or DC 30-100V input
- More Functions: It supports over-current protection, over-voltage protection, position outside the tolerance protection; The build-in place in position and alarm output signal can help the upper monitor to monitor and control,the function of position ultra difference alarm can ensure the machine work safely
- Advantages:Stepper motor closed loop system,never lose step; The stepper motor control has a new generation of 32-bit DSP; The vector control technology can ensure the accuracy of the motor; Improve motor output torque and working speed; Automatic current adjustment based on load; Pulses response frequency can reach 200KHZ; 16 kinds microsteps choice,highest 51200 microsteps/rev
9.4Excellent
View offer on:
Show more
5
CNCTOPBAOSCNCTOPBAOS 100W AC Servo Motor and Driver CNC Controller Kit,Servo System Control Kit,220V AC 1A 8mm Shaft 3000rpm/6000rpm 32N.cm/95N.cm RS485 17-Bit Encoder for CNC Router Milling Lathe Machine,Robot
Main highlights- Multiple Functions: Under voltage,over voltage,over load,over current,encoder exception,position error etc;Position control, speed control, torque control Modbus communication can be converted to meet common applications,standard RS485 communication function,realize upload and download network control;The internal simple PLC function, in some simple control occasions, PLC can be completely omitted, and a lower cost solution can be realized
- Motor Parameters: Model is 40F-00330GCL; Power: 100W; Number of poles: 10; Rated power supply: 220V; Rated speed: 3000rpm; Peak speed: 6000rpm; Rated torque: 32N.cm; Instantaneous max torque:95N.cm; Rated current: 1.0A; Peak current: 3.0A
- Encoder: Matching 17-bit single-turn absolute magnetic encoder,5 pairs of pole magnetic circuit design,to ensure the high accuracy; With Strong applicability,all input/output ports can be freely defined and have strong applicability,a variety of intelligent monitoring functions and operation panels are convenient for customers to debug and diagnose
- Driver Parameters: Model is SDF04NKW; Max Current:9.5A ;Input voltage: AC220V 50-60Hz ;Output Frequency:400Hz; Cooling method: radiating air cooling ;Control mode: SVPWM control; Protection level: IP54
- Application areas: Widely used on Industrial manipulator,Semiconductor equipment,CNC Router,Milling Machine,Engraving Machine,Carving Machines,Measuring equipment,Industrial robot and other automated equipment on the market
9.3Excellent
View offer on:
Show more
6
RATTMMOTORRATTMMOTOR 400W 110V Servo Motor Kit, Servo Motor with Servo Motor Driver CNC Controller Kit for CNC Engraver Milling Machine/Robot (Without Brake)
Main highlights- 【Triple Overload/Powerful Motor】The motors are made of high quality materials with 3 times overload capacity, built-in disturbance torque observer, extremely strong resistance to external disturbances and stable operation. The motor also has features such as: high torque, no lost step, low noise, fast response, small size, high controllability, and has been operated.
- 【Motor parameters】Model: A2M110-60SV01330P5; With brake: No; Power: 400W; Number of poles: 5 pairs; Rated power supply: 110V; Rated speed: 2500r/min; Peak speed: 3000r/min; Rated torque: 1.27N.m; Max torque: 3.82 N.m; Ender Resolution: 10000ppr; Protection structure: IP65; Impact strength: 98m/s²; Vibration resistance: 49m/s².
- 【Driver Parameters】Model: S2SVD15-110; Input voltage: AC110V (50/60Hz); Cooling method: Heat dissipation air cooling; Encoder type: 17 bit magnetic encoder.
- 【Driver Multiple Functions】The driver adopts advanced algorithm, low-speed operation is more stable, at the same time, the high-performance encoder ensures the accuracy of the motor; Reserved multiple IO function interface, arbitrary combination to meet the functional needs of different occasions; support RS-232, RS-485 interface, modbus communication protocol, can be connected to the PC, PLC and other host computer equipment.
- 【Application Areas】Suitable for a variety of automation equipment and instruments, such as screw machines, automatic equipment, medical equipment, semiconductor equipment, engraving equipment, measuring equipment, AGV carts, etc.
- 【AC Servo Features】Three types of command pulse input, i.e. command direction and pulse input, clockwise/counterclockwise pulse input, and quadrature pulse input with 90 degree phase difference. Position control, speed control, torque control, and extension control can be converted through Modbus communication to meet common applications. The display mode can be switched between three modes: monitor mode, auxiliary mode, and user parameter mode.
9.2Excellent
View offer on:
Show more
7
YIDOFENG24% OffYIDOFENG Without Brake 600W AC Servo Motor Kit, CNC 220V 3.5A 3000rpm L3000 17-bit Encoder RS485 Servo Motor Driver Controller Kit for CNC Engraver Milling Machine/Robot
Main highlights- 【Motor Parameters】Model: 60BSF-S06030-128B-Z3(JFS); Without brake; Power: 600W; Number of poles: 5 pairs; Rated power supply: 220V; Rated speed: 3000r/min; Peak speed: 5000r/min; Rated torque: 1.91N.m; Max torque: 5.73 N.m; Rated current: 3.5A; Max current: 10.5A;Protection structure: IP65.
- 【Driver Parameters】Model: M864S; Input voltage: AC220V (50/60Hz); Power:0.1KW-1KW;Cooling method: Heat dissipation air cooling; Encoder type: 17 bit magnetic encoder.Control mode: SVPWM control; Operating temperature: 0℃-+55℃; Storage temperature: -20℃-80℃; Protection level: IP54
- 【Driver Functions】Over voltage,over load,over current,Under voltage,encoder exception,position error etc.Position control, speed control, torque control Modbus communication can be converted to meet common applications,standard RS485 communication function, realize upload and download network control.The internal simple PLC function, in some simple control occasions, PLC can be completely omitted, and a lower cost solution can be realized.
- 【Application】Widely apply to Industrial manipulator,Engraving Carving equipment,Semiconductor equipment,Measuring equipment,Medical equipment,Industrial robot and other automated equipment on the market
- 【17 bit Encoder】Matching with 17 bit single loop absolute value encoder, 5 pairs of poles,to ensure the accuracy ; With Strong applicability,all input/output ports can be freely defined and have strong applicability,a variety of intelligent monitoring functions and operation panels are convenient for customers to debug and diagnose.
8.9Very Good
View offer on:
Show more
8
RATTMMOTORRATTMMOTOR CNC Controller Kit, 4 Axis CNC Kit with Nema23 Stepper Motor 57*76mm 270Oz-in 3A 1.8Nm, TB6600 Driver 4A, USB Mach3 CNC Motion Control Card Breakout Board, 24V Power Supply for CNC Machine
Main highlights- 【USB Interface, Drive-free Design 4-Axis Linkage Control Card】Output pulse frequency of 400KHz, using the minimum error interpolation algorithm, high processing accuracy. Supports up to 4 axes of linkage control, of which the 4th axis can be set as the slave axis. The control card can be connected to PC-compatible computers such as laptops, desktops, tablets and other computers with a USB interface. As long as Mach3 is running, the control card can be used without installing any drivers.
- 【Support Forward and Reverse Control Stepper Motor Driver】42/57 TB6600 stepper motor driver with input voltage anti-reverse connection and overheat/overcurrent short circuit protection, equipped with red warning light. through the 3-digit DIP switch, you can choose 7 subdivisions (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 subdivisions (0.5A, 1.0A 1.5A, 2.0A, 2.5A, 3.0A, 3.5A) current control.
- 【Stable output 24V DC power supply】Over-current, over-voltage and overload protection, power supply stable power supply, electrical energy conversion rate of up to 90%, higher efficiency. Together with the heat dissipation fan design, shell hollow design, heat dissipation ability faster and stronger, more durable performance.
- 【Multi-function control card】With support for automatic home return, automatic tool setting, emergency stop input, limit switch access, spindle control (PWM mode and Him electrical mode), handwheel interface and other functions. Provide up to 12-way digital signal input, 4-way with optocoupler digital signal input and isolated relay output. Strong anti-interference and high reliability.
- 【Motor and TB6600 Driver wiring】Stepper motor's RED wire connects to driver's A+ port. Stepper motor's GREEN wire connects to driver's A- port. Stepper motor's YELLOW wire connects to driver's B+ port. Stepper motor's BLUE wire connects to driver's B- port.
- 【Low Noise/High Torque Hybrid Stepper Motor】23HS8430 2-phase stepper motor with a shaft diameter of 8mm, a current of 3A and an angle of 1.8°, is made of durable metal on the outside, and the perfect combination of rubber and rotor fills up the inner space and stabilizes the overall structure of the motor. The coils are made of pure copper enameled wire and the torque is up to 270oz-in (180N.cm/18kg-cm). The motor runs quietly and doesn't cause the generator to become too hot over a long time.
- 【Control Card and TB6600 Driver wiring (X-axis as an example) 】Driver's "Pul+" connects to control card's XP+ pin , Driver's "DIR+" connects to control card's XD+ pin , Driver's " PUL- " pin and " DIR- " connection to USB Mach3 control card's " GND ".
8.8Very Good
View offer on:
Show more
9
CNCTOPBAOSCNCTOPBAOS 4 Axis Nema23 Stepper Motor USB Mach3 CNC Kit,270oz-in 76mm 3A,USB Controller Board Motion Control Card,TB6600 Driver 4.5A 24V for CNC Router Milling Engraving Machine
Main highlights- Model: 23HS8430 Nema23 Stepper Motor; Holding Torque: 270oz-in 180N.cm; Motor Size:57x57x76mm; Phase: 2 phase; 1.8° Step Angle; Type:Hybrid; Shaft: Dia 8mm Single shaft; Wiring: A+ : Red; A- : Green; B+ : Yellow; B- : Blue
- Functions of the Mach3 Control Board: It supports 4-axis linkage control at most; Max step-pulse frequency is 100KHz;Support probe tool,E-stop input,Limit switches;Support for electronic handwheel; Support spindle control PWM and relay mode
- Driver: TB6600 driver Voltage: DC 10V-45V; Current: rated maximum output reaches: ±4.5A ; Subdivision: full step, half step, 1/4 step, 1/8 step, 1/16 step, maximum 16 subdivisions
- 4 Axis USB Mach3 Motion Control Board: USB port is applicable to any netbook, notebook, desktop, tablet and other PC compatible computers with USB interface.This control board does not require any drivers to be installed. As long as Mach3 can run, the control card can be used; Support computer system:Windows 2000/ XP / Windows 7/8/10
- 350W 24V DC Switching Power Supply: AC input voltage range: 110V-120V AC or 220V-240V AC; selected by switch to choose input voltage
8.6Very Good
View offer on:
Show more
10
RATTMMOTORRATTMMOTOR CNC Controller Kit, 4 Axis CNC Kit with Nema23 Stepper Motor 57*76mm 270Oz-in 3A 1.8Nm, TB6600 Driver 4A, USB Mach3 CNC Motion Control Card Breakout Board, 24V Power Supply for CNC Machine
Main highlights- 【USB Interface, Drive-free Design 4-Axis Linkage Control Card】Output pulse frequency of 100KHz, using the minimum error interpolation algorithm, high processing accuracy. Supports up to 4 axes of linkage control, of which the 4th axis can be set as the slave axis. The control card can be connected to PC-compatible computers such as laptops, desktops, tablets and other computers with a USB interface. As long as Mach3 is running, the control card can be used without installing any drivers.
- 【Support Forward and Reverse Control Stepper Motor Driver】42/57 TB6600 stepper motor driver with input voltage anti-reverse connection and overheat/overcurrent short circuit protection, equipped with red warning light. through the 3-digit DIP switch, you can choose 7 subdivisions (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 subdivisions (0.5A, 1.0A 1.5A, 2.0A, 2.5A, 3.0A, 3.5A) current control.
- 【Stable output 24V DC power supply】Over-current, over-voltage and overload protection, power supply stable power supply, electrical energy conversion rate of up to 90%, higher efficiency. Together with the heat dissipation fan design, shell hollow design, heat dissipation ability faster and stronger, more durable performance.
- 【Multi-function control card】General-purpose opto-couplers isolation input : can support the limit switch, emergency stop switch, auto tool zero, home switch etc, electronic handwheel; Have 0-10V signal output , you can use mach3 software to control the spindle motor speed; 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps or other device.
- 【Motor and TB6600 Driver wiring】Stepper motor's RED wire connects to driver's A+ port. Stepper motor's GREEN wire connects to driver's A- port. Stepper motor's YELLOW wire connects to driver's B+ port. Stepper motor's BLUE wire connects to driver's B- port.
- 【Low Noise/High Torque Hybrid Stepper Motor】23HS8430 2-phase stepper motor with a shaft diameter of 8mm, a current of 3A and an angle of 1.8°, is made of durable metal on the outside, and the perfect combination of rubber and rotor fills up the inner space and stabilizes the overall structure of the motor. The coils are made of pure copper enameled wire and the torque is up to 270oz-in (180N.cm/18kg-cm). The motor runs quietly and doesn't cause the generator to become too hot over a long time.
- 【Control Card and TB6600 Driver wiring (X-axis as an example) 】Driver's "Pul+" connects to control card's XP+ pin , Driver's "DIR+" connects to control card's XD+ pin , Driver's " PUL- " pin and " DIR- " connection to USB Mach3 control card's " 5V "".
8.5Good
View offer on:
Show more
