10 Best Analog Multiplexers In The Us - Black Friday 2024
Best Choice1
EvertechEvertech 8 Channel Analog CCTV Video Multiplexer Color Quad Processor Screen Splitter with Remote Control
Main highlights- Power Supply adapter, remote control and user manual included.
- One year warranty and free technical support.
- NTSC and PAL Video Format Supported. Resolution PAL: 720 x 576; NTSC: 720 x 480
- Multiple display modes: 8 camera view, 4 camera view, 2 camera view, single camera view, PIP (picture in picture)
- 8 Channel CCTV Video Multiplexer Color Quad Processor compatible with all Analog Security Cameras. NOT Compatible with 720P/1080P AHD / TVI / CVI / HD-SDI CCTV Cameras.
- 8 Channel BNC Video Inputs, 1 BNC VCR In, 1 BNC VCR Out, 1 BNC Monitor. Image Freeze Function, Selectable Image Zoom Area, Video Loss Detection, Motion Detection, Auto sequence
9.8Exceptional
View offer on:
Show more
- Curious about how we select the top products for you? Explore How It Works
Value for Money2
Coliao10pcs 74HC4051 8-Channel-Mux Analog Multiplexer Selector Module Distributor Resolver CJMCU-4051 Module for Raspberry Pi
Main highlights- When E is low, one of the 8 switches will be selected by S0-S2 (low-impedance state). When E is high, all switches enter a high-impedance state, directly ignoring S0-S2.
- VCC and GND are the supply pins for the digital control terminals (S0-S2, E). The VCC to GND range of the 74HC4051 is 2.0V-10.0V.
- The 74HC4051 module is an 8-channel analog multiplexer/demultiplexer with 3 digital selects (S0-S2), one active low enable (E), and 8 independent inputs/outputs (Y0-Y7) ) and a common input / output (Z).
- Package Contains: 10pcs 74HC4051 8 channel analog multiplexer selector module multiplexers distributor resolver CJMCU-4051 for raspberry pi.
- As a digital multiplexer/demultiplexer, the VEE will be connected to GND (typically grounded).
9.6Exceptional
View offer on:
Show more
3

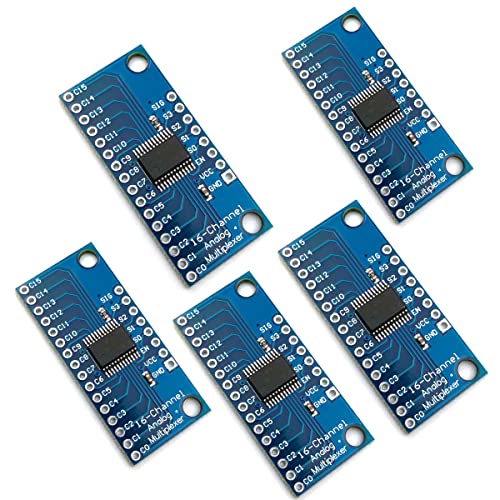

XimimarkXimimark 5Pcs 16CH Analog Digital Multiplexer Breakout Board Module CD74HC4067 CMOS Precise Module For Arduino
9.4Excellent
View offer on:
Show more
4
DORHEA12Pcs CD74HC4067 16-Channel Analog Digital Multiplexer MUX Breakout Board Module CD74HC4067 CMOS Precise Module Compatible with DIY
Main highlights- To control it, connect 4 digital outputs to the chip’s address select pins (S0-S3), and send it the binary address of the channel you want. This allows you to connect up to 16 sensors to your system using only 5 pins.
- The internal switches are bidirectional, support voltages between ground and VCC, have low “on” resistance and low “off” leakage, and to prevent crosstalk, perform “break-before-make” switching. The board also breaks out the chip’s “enable” pin, which when driven high, will completely disconnect the common pin (all switches “off”).
- Since the mux/demux also works with digital signals, you can use it to pipe TTL level serial data to or from multiple devices. For example, you could use it to connect the TX pins of 16 devices to one RX pin on your microcontroller. You can then select any one of those 16 devices to listen to.
- It works with both digital and analog signals (the voltage can’t be higher than VCC), and the connections function in either direction.If you want two-way communications,you can add a second board to route your microcontroller's TX line to 16 device's RX lines. By using multiple boards, you can create similar arrangements for I2C,SPI,etc.
- CD74HC4067 board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer, use the CD74HC4067 16-channel analog signal switch;Analog signal input: C0-C15 16 channels; Analog output: DIG; Channel control: S0-S3
9.3Excellent
View offer on:
Show more
5
BridgoldBridgold 10pcs 74HC4051 74HC 8-Channel Analog multiplexer, Signal Splitter,16-DIP
Main highlights- Wide analog input voltage range: ± 5 V
- Typical “break before make” built in
- The products have been strictly screened, with stable performance and reliable data output.
- Output capability: non-standard
- Logic level translation: to enable 5 V logic to communicate with ± 5 V analog signals
9.2Excellent
View offer on:
Show more
6
QCCANQCCAN 12PCS CD74HC4067 16-Channel Analog Digital Multiplexer Breakout Board Module 2V-6V
Main highlights- This is a breakout board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer CD74HC4067.
- This chip is like a rotary switch - it internally routes the common pin (COM in the schematic, SIG on the board) to one of 16 channel pins (CHANxx). It works with both digital and analog signals (the voltage can't be higher than VCC), and the connections function in either direction.
- Function: Use 16 ADCs to collect 16 analog signals. Use the CD74HC4067 16-channel analog signal switch.
- A method for controlling the motor, lights, LED, DC motors, micro-pumps, solenoid valves, etc., very convenient.
- .Analog Input: C0-C15 16 channels; Analog output: DIG; Channel Control: S0-S3
9.1Excellent
View offer on:
Show more
7
HiLetgoHiLetgo CD74HC4067 CMOS 16 Channel 16 CH Digital Analog Multiplexer Breakout Module for Arduino
Main highlights- Use the CD74HC4067 16-channel analog signal switch;Analog signal input: C0-C15 16 channels.
- This is a breakout board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer CD74HC4067.
- This chip is like a rotary switch - it internally routes the common pin (COM in the schematic, SIG on the board) to one of 16 channel pins (CHANxx). It works with both digital and analog signals (the voltage can't be higher than VCC), and the connections function in either direction.
- Function: Use 16 ADCs to collect 16 analog signals.
- Analog output: DIG;Channel control: S0-S3
9.0Excellent
View offer on:
Show more
8
DAOKAIDAOKAI 10PCS CD74HC4067 High Speed CMOS Precise Analog Multiplexer 16-Channel Analog Digital Multiplexer MUX Breakout Board Module
Main highlights- 🔘[Product]This is a breakout board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer CD74HC4067. It works with both digital and analog signals, and the connection works in both directions
- 🔘[Package includes]You will get 10 x 16-Channel Analog Digital Multiplexer Breakout Board Module
- 🔘[Multi-device transfer]Since the mux/demux also works with digital signals, you can use it to pipe TTL level serial data to or from multiple devices.
- 🔘[Internal switch]The internal switches are bidirectional, support voltages between ground and VCC, have low “on” resistance and low “off” leakage, and to prevent crosstalk, perform “break-before-make” switching.
- 🔘[Function] Use one ADC to collect 16 analog signals. 16-channel analog signal switch using CD74HC4067
8.9Very Good
View offer on:
Show more
9
ACEIRMCACEIRMC 10pcs CD74HC4067 16-Channel Analog Digital Multiplexer Breakout Board Module for Arduino 2V-6V Microcontroller 16 Device RX Lines
Main highlights- To control it, connect 4 digital outputs to the chip’s address select pins (S0-S3), and send it the binary address of the channel you want. This allows you to connect up to 16 sensors to your system using only 5 pins!
- This is a breakout board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer CD74HC4067. This chip is like a rotary switch - it internally routes the common pin (COM in the schematic, SIG on the board) to one of 16 channel pins (CHANxx)
- This is a breakout board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer CD74HC4067.
- It works with both digital and analog signals (the voltage can’t be higher than VCC), and the connections function in either direction.
- Analog output: DIG;Channel control: S0-S3
8.8Very Good
View offer on:
Show more
10
PAMEENCOSPAMEENCOS 10 pcs CD74HC4067 High-Speed CMOS 16-Channel Analog Multiplexer for Analog Digital
Main highlights- Use one ADC to collect 16 analog signals. 16-channel analog signal switch using CD74HC4067. Analog signal input: C0-C15 16 channels. Analog output: DIG. Channel control: S0-S3.
- The internal switches are bidirectional, support voltages between ground and VCC, have low “on” resistance and low “off” leakage, and to prevent crosstalk, perform “break-before-make” switching. The board also breaks out the chip’s “enable” pin, which when driven high, will completely disconnect the common pin (all switches “off”).
- Since the mux/demux also works with digital signals, you can use it to pipe TTL-level serial data to or from multiple devices. For example, you could use it to connect the TX pins of 16 devices to one RX pin on your microcontroller. You can then select any one of those 16 devices. If you want two-way communications, you can add a second board to route your microcontroller’s TX line to 16 device’s RX lines. By using multiple boards, you can create similar arrangements for I2C, SPI.
- It works with both digital and analog signals (the voltage can’t be higher than VCC), and the connections function in either direction. To control it, connect 4 digital outputs to the chip’s address select pins (S0-S3), and send it the binary address of the channel you want (see the datasheet for details). This allows you to connect up to 16 sensors to your system using only 5 pins!
- 2V to 6V operation, 'On' resistance: 70 Ohms @ 4.5V, 6ns break-before-make @ 4.5V
8.6Very Good
View offer on:
Show more
